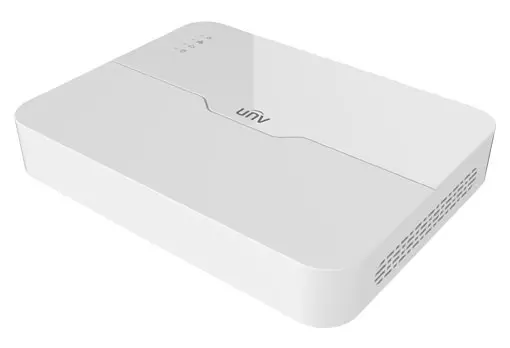

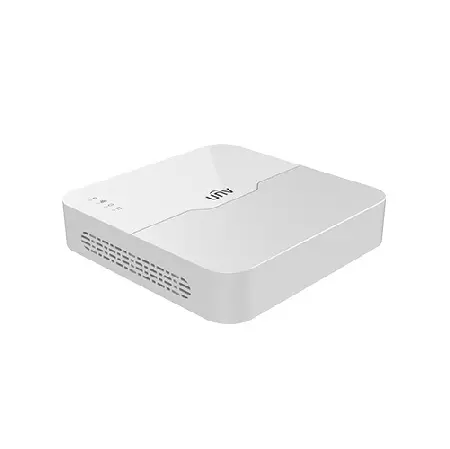

Uniview Video Recorder HDD 4 PoE

• Video Input & Decoding
  • Supports 16 IP channels

  • Compatible with Ultra 265 / H.265 / H.264 formats

  • Recording resolution up to 4K (3840×2160)

  • Decoding capability: 1×4K@30fps, 4×5MP@25fps, 4×1080P@30fps, etc.

• Display & Output

  • HDMI and VGA simultaneous output

  • HDMI supports up to 4K resolution

  • Live view layouts: 1/4/6/8/9/16 channels

• Storage

  • 1 SATA interface

  • Supports up to 8TB HDD (varies with temperature)

• Remote Access

  • Up to 128 remote users

  • Compatible with EZView mobile app and web browsers

• Smart Playback

  • Synchronous playback for up to 16 channels

  • Smart search and event-based playback

• Integration

  • ONVIF (Profiles S/G/T) and RTSP support

  • Works with Uniview IP cameras and third-party devices

• VCA Detection via Camera

• • Intrusion, cross-line, enter/leave area, audio detection

  • Ultra Motion Detection (UMD) and Smart Intrusion Prevention (SIP)

• Smart Search: Face search and behavior search for quick event retrieval
• Corridor Mode: Optimized vertical display for hallways and narrow spaces

• Power Consumption: ≤5W (without HDD); ensure proper power supply
• No PoE Ports: Requires external PoE switch or injector for camera power
• Browser Compatibility: Best used with updated Chrome, Firefox, Edge; older browsers may need plug-ins
• Environmental Limits

• • Operating temperature: -10°C to +55°C

  • Humidity: ≤90% RH (non-condensing)

• NVR301-16S3 unit
• Power adapter

• USB mouse

NB: No hard disk included
