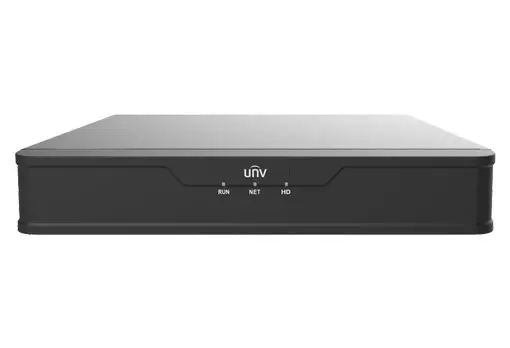

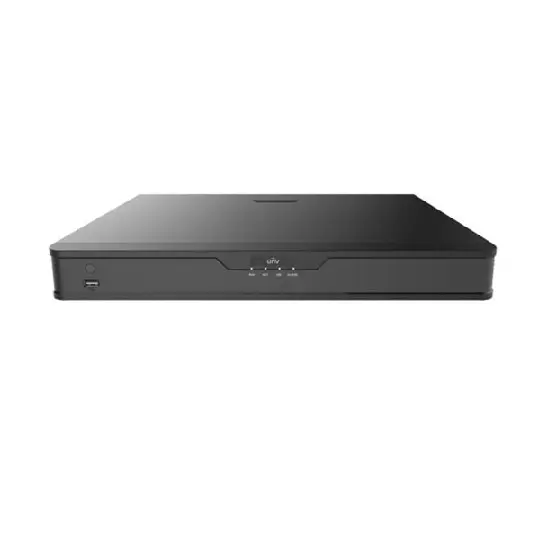

Uniview Video Recorder 1 HDD 16-ch 1U Network
- Video Input & Decoding
Supports 16 IP channels
Compatible with Ultra 265 / H.265 / H.264 formats
Recording resolution up to 4K (3840Ă—2160)
Decoding capability: 1Ă—4K@30fps, 4Ă—5MP@25fps, 4Ă—1080P@30fps, etc.
- Display & Output
HDMI and VGA simultaneous output
HDMI supports up to 4K resolution
Live view layouts: 1/4/6/8/9/16 channels
- Storage
1 SATA interface
Supports up to 8TB HDD (varies with temperature)
- Remote Access
Up to 128 remote users
Compatible with EZView mobile app and web browsers
- Smart Playback
Synchronous playback for up to 16 channels
Smart search and event-based playback
- Integration
- ONVIF (Profiles S/G/T) and RTSP support
- Works with Uniview IP cameras and third-party devices
- VCA Detection via Camera
Intrusion, cross-line, enter/leave area, audio detection
Ultra Motion Detection (UMD) and Smart Intrusion Prevention (SIP)
Smart Search:Â Face search and behavior search for quick event retrieval
Corridor Mode:Â Optimized vertical display for hallways and narrow spaces
- Power Consumption: ≤5W (without HDD); ensure proper power supply
- No PoE Ports:Â Requires external PoE switch or injector for camera power
- Browser Compatibility:Â Best used with updated Chrome, Firefox, Edge; older browsers may need plug-ins
- Environmental Limits
Operating temperature: -10°C to +55°C
Humidity: ≤90% RH (non-condensing)
- NVR Unit
- Power adapter
- USB mouse
- Quick installation guide
