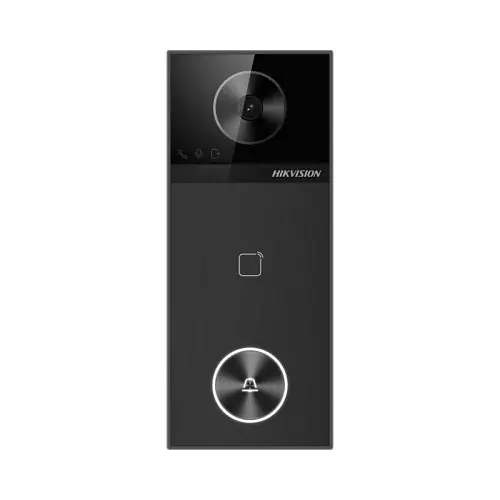

Hikvision Villa door station 4MP IP- DS-KV6114-WBE1
Camera resolution: 4MP (2688×1520) main stream, with sub-stream options down to 0.3MP.
Ultra-wide angle lens: 150° horizontal field of view for comprehensive coverage.
IR night vision: Clear imaging even in low-light conditions.
Multiple unlocking methods: Card, Bluetooth, Hik-Connect app, or indoor station.
Dual lock control: Supports control of two separate locks simultaneously.
Video recording & playback: Accessible via Hik-Connect mobile app or PC web client.
PoE support: IEEE802.3at standard for simplified installation.
Weather resistance: IP65-rated, suitable for outdoor installation.
Operating system: Embedded Linux with 4GB ROM and 512MB RAM.
Integration tip: Pair with Hik-Connect for remote unlocking and visitor monitoring.
Security enhancement: Use dual authentication (e.g., card + PIN) for added protection.
Network setup: Ensure a stable PoE switch/router connection to avoid video lag.
Placement advice: Install at eye-level for optimal facial recognition and wide-angle coverage.
Maintenance: Regularly update firmware to benefit from Hikvision’s latest security patches.
- Power requirement: Must be powered via PoE; incorrect supply may damage the unit.
- Weather exposure: While IP65-rated, avoid direct heavy rain without protective housing.
- Network security: Always configure strong passwords and enable encryption to prevent unauthorized access.
- Compatibility check: Ensure indoor station and Hik-Connect app versions are updated for smooth integration.
- DS-KV6114-WBE1 Villa Door Station unit
- Mounting accessories (screws, brackets)
- Quick Start Guide & User Manual
Note: PoE injector/switch and indoor station are typically sold separately.
