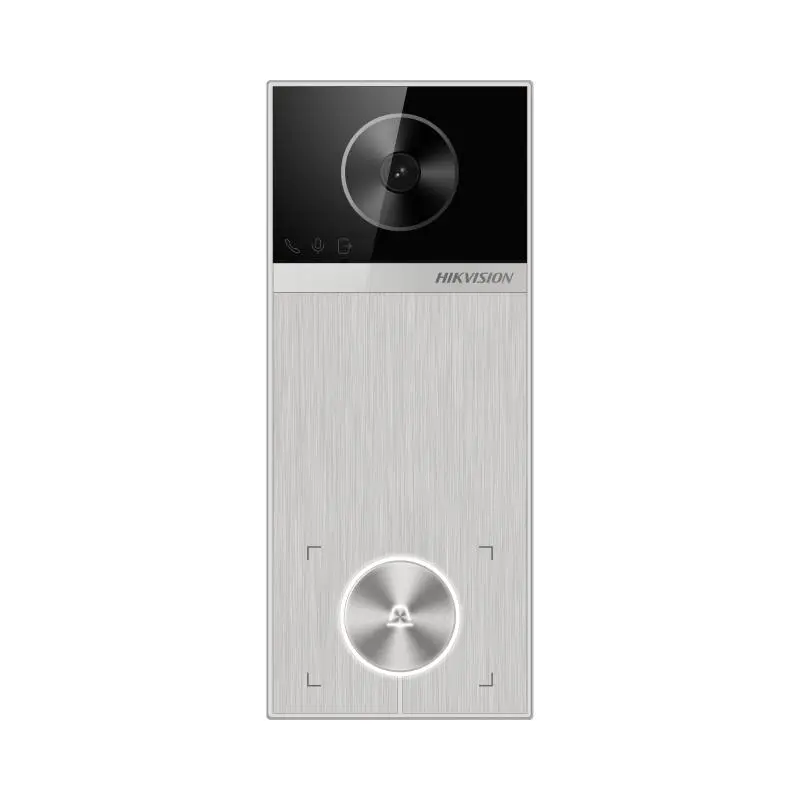

Hikvision Villa door station 4MP IP- DS-KV6114-ME1
🔧 Key Features
- High-resolution camera: 4MP (2688×1520P) main stream, with sub-streams down to 0.3MP.
- Wide field of view: 150° horizontal, 75° vertical coverage.
- Dual lock control: Supports two independent locks.
- Unlocking methods: Card, Hik-Connect app, indoor station.
- IR night vision: Supplement light up to 3 meters.
- Video compression: H.264, H.265, MJPEG supported.
- Audio system: Built-in omnidirectional microphone and loudspeaker, supporting codecs like G.711, AAC, Opus, G.729.
- Operating system: Embedded Linux with 4GB ROM and 512MB RAM.
- Power supply: IEEE802.3at PoE standard.
- Durability: Weather-resistant design with wide dynamic range (120 dB WDR).
🔍 Smart hint
- Integration tip: Use Hik-Connect for remote unlocking, video monitoring, and playback.
- Security enhancement: Combine card access with app-based authentication for stronger protection.
- Placement advice: Install at eye-level for optimal facial recognition and wide-angle coverage.
- Network setup: Ensure a stable PoE connection to avoid video lag or power issues.
- Firmware updates: Regularly update to benefit from Hikvision’s latest security patches.
⚠️ Warnings
Power requirement: Must be powered via PoE; incorrect supply may damage the unit.
Weather exposure: While weather-resistant, avoid direct heavy rain without protective housing.
Network security: Configure strong passwords and enable encryption to prevent unauthorized access.
Compatibility check: Ensure indoor station and Hik-Connect app versions are updated for smooth integration.
📦 What’s Included
- DS-KV6114-ME1 Villa Door Station unit
- Mounting accessories (screws, brackets)
- Quick Start Guide & User Manual
Note: PoE injector/switch and indoor station are typically sold separately.
