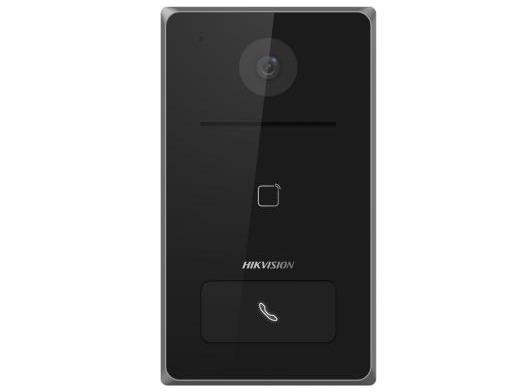

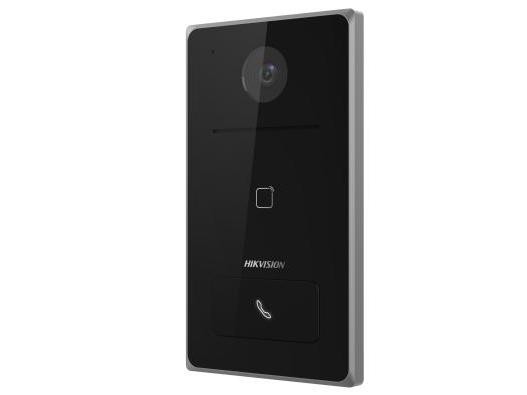

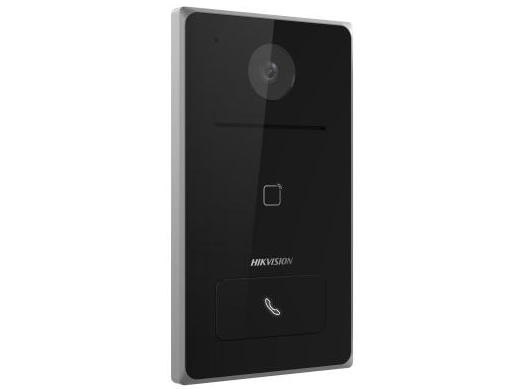

Hikvision Villa door station 2MP IR- DS-KV6133-WME1/Surface
🔧 Key Features
- Camera: 2MP color camera, resolution up to 1920×1080p.
- Wide field of view: 129° horizontal, 75° vertical.
- IR supplement light: Night vision up to 2.5 meters.
- Unlocking methods: Built-in Mifare card reader (13.56 MHz), Hik-Connect app, or indoor station.
- One-button calling: Simplified design for direct visitor calls.
- Audio: Built-in microphone and speaker with noise reduction.
- Relay output: 1 relay (NO/NC) for lock control.
- Alarm inputs: Supports up to 4 alarm inputs.
- Connectivity: Standard PoE power supply, supports iVMS-4200, browser, and Hik-Connect app.
- Durability: IP65 protection level, aluminum alloy casing.
- Mounting: Surface-mounted design.
🔍 Smart hint
- App integration: You can call directly to the Hik-Connect app without needing an indoor station.
- Security tip: Use card + app authentication for stronger access control.
- Installation advice: Surface mounting makes it easier to retrofit into existing entryways.
- Network setup: Ensure a stable PoE connection for uninterrupted video and audio.
- Expandability: Up to 16 sub-door stations can be added in basic mode.
⚠️ Warnings
- Power requirement: Must be powered via PoE; incorrect supply may damage the unit.
- Weather exposure: Although IP65-rated, avoid direct heavy rain without protective housing.
- Network security: Always configure strong passwords and update firmware to prevent unauthorized access.
- Compatibility check: Ensure Hik-Connect app and firmware are updated for smooth integration.
📦 What’s Included
- DS-KV6133-WME1 Villa Door Station unit
- Mounting accessories (screws, brackets)
- Quick Start Guide & User Manual
Note: PoE injector/switch and indoor station are typically sold separately.
