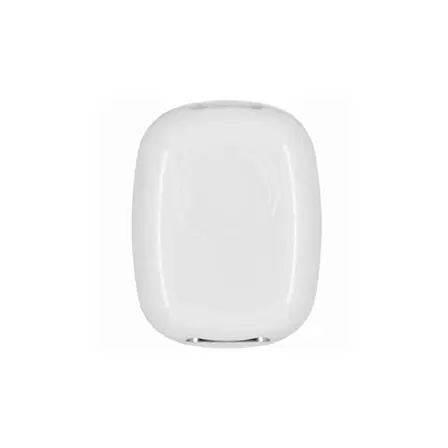

Shelly - The Pill
🔧 Key Features
- Multi-Purpose Functionality: Acts as a sensor reader and a controller for low-voltage actuators/loads.
- Connectivity: Features both Wi-Fi and Bluetooth for communication.
- Power: Powered by 5V⎓ via USB-C.
- Compact Size: Small form factor for fitting into space-constrained environments.
- Sensor Compatibility: Plug-and-play compatibility with external temperature sensors:
Single DHT22 (for Temperature and Humidity)
Up to five DS18B20 sensors (for Temperature, often used for water temperature monitoring in pools, aquariums, etc.)
- Configurable I/O: Multiple inputs/outputs that can be configured for 1-Wire, Digital Input, Digital Output, and Analog Input (Voltmeter).
- Use Cases: Water Temperature Monitoring, Temperature and Humidity Monitoring, Digital Sensors Readings (e.g., door reed, motion), DC Voltage monitoring (with external add-on), and External Systems Control.
🔍 Smart hint
- App Integration: Use the Shelly Smart Control App for initial setup, configuration, monitoring, and creating automation scenes.
- Temperature Monitoring: It is ideal for monitoring multiple temperature points (up to five DS18B20 sensors) using a splitter add-on.
- Digital Input: Connect simple digital sensors (like a reed switch for door/window status or a pushbutton) to trigger automations (like lights, pumps, or alerts) via the app.
- Factory Reset: A factory reset can be performed by pressing and holding the control button for 10 seconds.
⚠️ Warnings
- Power Supply: Power the device only with USB Type-C, 5V⎓.
- Repairs: Do not repair yourself if the device is damaged or defective.
- Peripherals: Connect only officially supported peripheral Add-ons and adhere to their user guides and maximum voltages.
- Electrical Load: Do not connect to peripherals or appliances that exceed the maximum electric load or maximum voltages.
- Installation: Disconnect the power of the device before making any changes to the connections of add-ons or peripherals.
- Environment: Use indoors only. Keep dry and away from dirt or moisture.
- Children: Keep the device and any remote control means out of reach of children (swallowing hazard).
- Disposal: Do not dispose of in household waste; recycle at a suitable collection point.
📦 What’s Included
- The Pill device (S3SN‑0U53X)
- Adapter Cable (likely a 3.5mm jack cable adapter for connecting external sensors)
- User Manual
