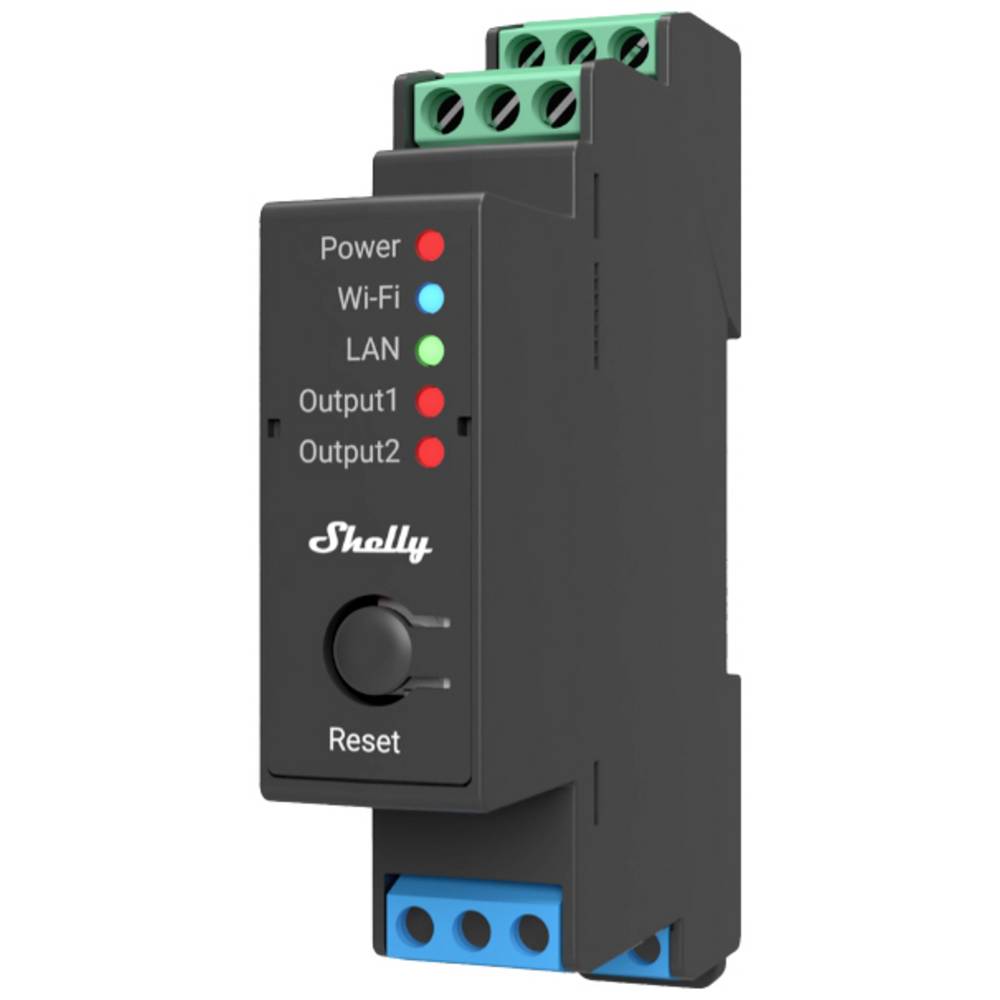

Shelly Pro 2
🔧 Key Features
- Model & Name: Shelly Pro 2 v.1 (SPSW-202XE16EU)
- Mounting: DIN rail compatible, fits neatly in electrical distribution boxes
- Channels: 2 independent outputs, each handling up to 16A (combined max 25A)
- Connectivity: Works via WiFi, LAN, and Bluetooth, ensuring stable communication
- Control Options: Compatible with voice assistants and smart home platforms like Homey and SmartThings
- Potential-Free Contacts: Allows safe switching of different circuits without direct electrical connection
- Improved Design (v.1 vs v.0):
No more 12V DC option
No DC switching
Better thermal performance with 4-layer PCB
Enhanced dielectric performance in casing
🔍 Smart hint
- Connectivity: Use LAN for maximum stability in professional setups; WiFi and Bluetooth are also supported
- Outputs: Two independent channels, each up to 16A, but combined max is 25A
- Potential-Free Contacts: Allows switching of different circuits safely without direct electrical connection
- Integration: Works with voice assistants and platforms like Homey and SmartThings
- Firmware Flexibility: Enhanced with Gen2 firmware, offering advanced automation and scheduling options
⚠️ Warnings
- No DC Switching: This version does not support DC loads (only AC)
- Power Supply: No 12V DC option; designed for mains AC installation
- Load Limits: Do not exceed 16A per channel or 25A total across both channels
- Professional Installation Recommended: As a DIN rail device, it should be installed by qualified electricians to ensure compliance with local electrical codes
- Improved Safety Design: Enhanced dielectric performance and thermal management with a 4-layer PCB
📦 What’s Included
- Shelly Pro 2 v.1 unit
- Printed multilingual user manual for installation and configuration
