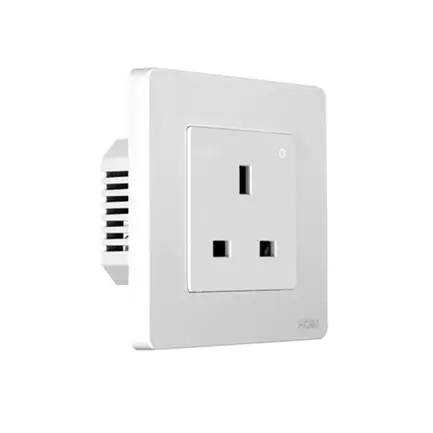

MOES ZigBee Star Ring Smart Socket UK Wall Embedded Outlet Energy Monitor
🔧 Key Features
- Device Type: ZigBee Smart Socket
- Connectivity: ZigBee protocol (compatible with Tuya ZigBee hub)
- Voltage Range: 90–250V AC
- Frequency: 50/60Hz
- Max Current: 13A
- Max Power: 2860W
- Power Consumption:
Working: <0.5W
Standby: <0.3W
- Control Method: Relay-based switching
- Indicator Light: Single white LED
- Wireless Specs:
Output Power: +10dBm
Air Interface Rate: 250Kbps
Channels: 11–26 @ 2.400–2.483GHz
🔍 Smart hint
- App Integration: Works with Smart Life app via Tuya ZigBee hub
- Features in App:
Power on/off memory
Switch log
Child lock
Current statistics
Overcurrent protection
- Relay Status Memory: Remembers last ON/OFF state after power loss
- Enhanced Pairing: Supports Bluetooth pairing mode for easier setup
⚠️ Warnings
- Installation Safety:
Always turn off power at the circuit breaker before installation
Verify presence of a neutral wire in the wall box
Use an electrical tester to confirm no voltage before wiring
- Professional Help: If unsure about wiring, consult a licensed electrician
- Do Not Install Live: Never install while power is on
📦 What’s Included
- ZigBee Smart Socket unit
Printed user manual
Compliance documentation (EU Declaration of Conformity)
Mounting screws and glass panel cover
