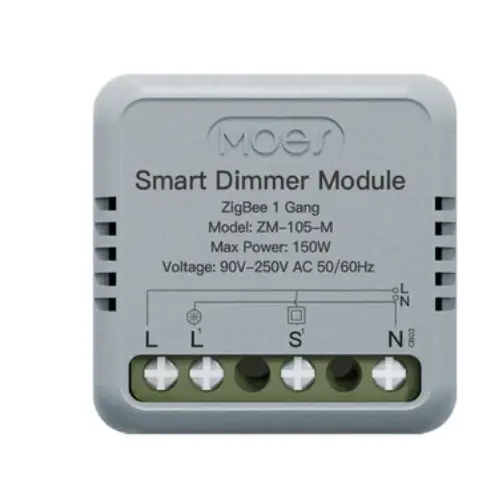

MOES Zigbee Smart Dimmer Switch Module Timer

• Dimmable Lighting Control: Adjust brightness levels smoothly to create the perfect ambiance.
• ZigBee 3.0 Protocol: Ensures fast, stable wireless communication and compatibility with ZigBee hubs.
• Voice Control: Works with Amazon Alexa and Google Home for hands-free operation.
• Memory Function: Remembers the last brightness and switch state after power loss.
• Switch Compatibility: Supports both toggle and auto-reset switches (sync function only for toggle switches).
• Flexible Installation: Can be installed in hidden switch boxes or mounted on DIN rails

To unlock full functionality, you’ll need a ZigBee gateway—this module doesn’t work standalone. Pairing it with a MOES or Tuya-compatible hub will allow remote control, automation, and voice commands

• Voltage Range: 90–250V AC. Make sure your setup matches this to avoid damage.
• Max Power: 75W at 110V / 150W at 220V—don’t exceed these limits.
• Temperature Limits: Operates between 0°C to 40°C; case temp max is 80°C.
• IP Rating: IP20—only suitable for indoor use and not protected against water.
• Gateway Required: Without a ZigBee hub, the module won’t function properly

• 1 × Smart Dimmer Module
• 1 × User Manual for installation and setup guidance
