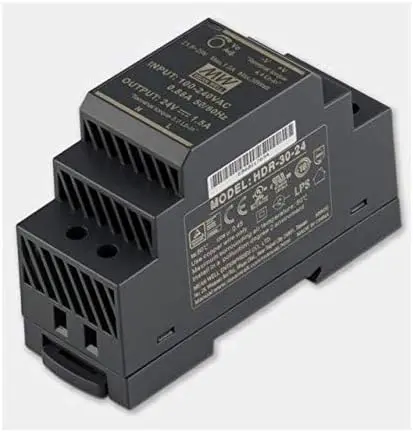

MeanWell HDR 30W Power Supply DIN Rail
🔧 Key Features
- Slim Design: Only (2SU), saving cabinet space.
- Universal Input: 85–264VAC (operational up to 277VAC).
- High Efficiency: Up to 87% efficiency.
- Wide Operating Temperature: –30°C to +70°C under free air convection.
- Protection Functions: Short circuit, overload (constant current mode), and overvoltage protection.
- Certifications: IEC60950-1, UL508, UL60950-1, EN61558-2-16.
- Output Options: Available in 5V, 12V, 15V, 24V, and 48V DC models.
- Applications: Household control systems, building automation, industrial control, factory automation, and electromechanical apparatus.
🔍 Smart hint
- Ensure proper ventilation in the cabinet for optimal cooling.
- Use the correct DIN rail type (TS-35/7.5 or TS-35/15) for secure installation.
- Adjust DC output voltage if needed (some models allow fine-tuning).
- Ideal for compact automation systems where space is limited.
⚠️ Warnings
- Do not exceed rated input voltage (max 277VAC).
- Avoid operating continuously at extreme temperature limits without airflow.
- Ensure wiring is done by qualified personnel to prevent electrical hazards.
- Overloading beyond rated capacity may trigger constant current protection mode.
📦 What’s Included
- HDR-30 power supply unit.
- Quick installation guide/user manual.
