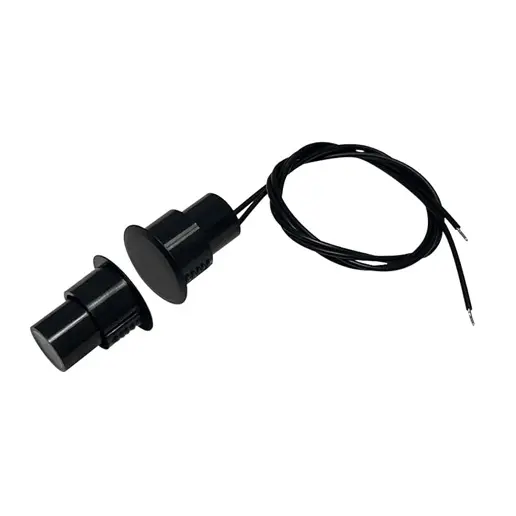

Magnetic Door Contact (NC)
š§ Key Features
- Flush Mounted Design: 3/4" standard mounting diameter with self-locking clip for easy installation.
- Color Options: Available in blackĀ or white.
- Operation Distance: Over 1" long sensing range, suitable for metal doors.
- Contact Type: Normally Closed (NC) reed switch, circuit is closed when the door is shut.
- Durability: IP65-rated housing for dust and water resistance.
- Compact Size: Dimensions approx. 0.75 x 0.75 x 1 inches.
- Quick Connect Terminals: Easy wiring with Molex-style connectors
š Smart hint
- Best Use Case: Ideal for integrating into home or office alarm systems where discreet flush mounting is preferred.
- Installation Tip: Ensure proper alignment between the sensor and magnet; misalignment reduces sensitivity.
- Compatibility: Works with most wired alarm panels that support NC-type contacts.
ā ļø Warnings
- Electrical Safety: Disconnect power before installation to avoid short circuits.
- Metal Doors: While suitable for metal doors, ensure correct spacing to prevent false triggers.
- Tampering Risk: Improper installation may allow intruders to bypass detection.
š¦ Whatās Included
- Magnetic Contacts (sensor + magnet).
- Self-locking mounting clips for flush installation.
- Quick-connect terminals for wiring.
