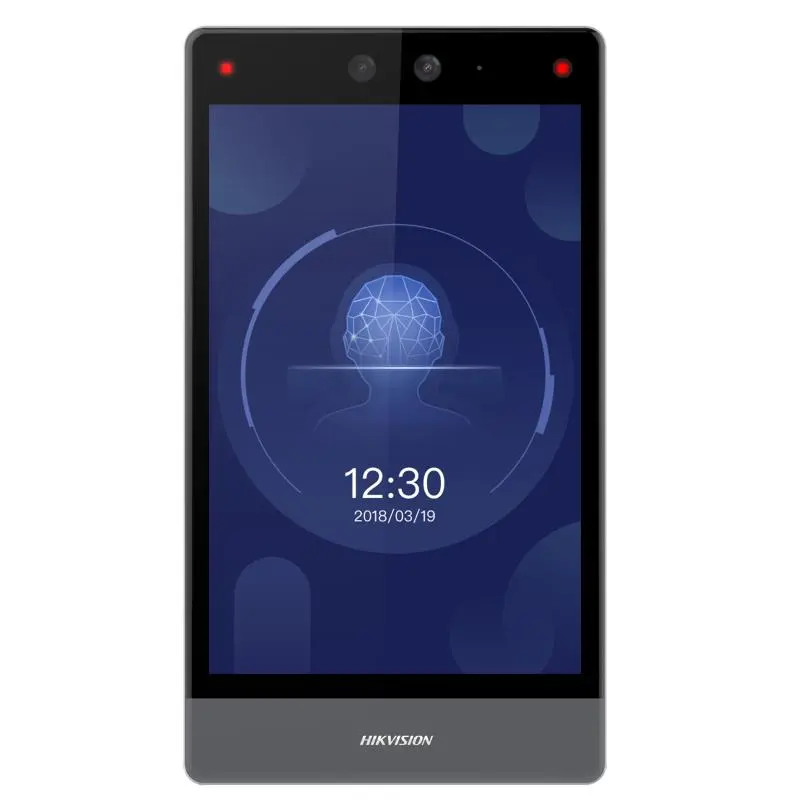

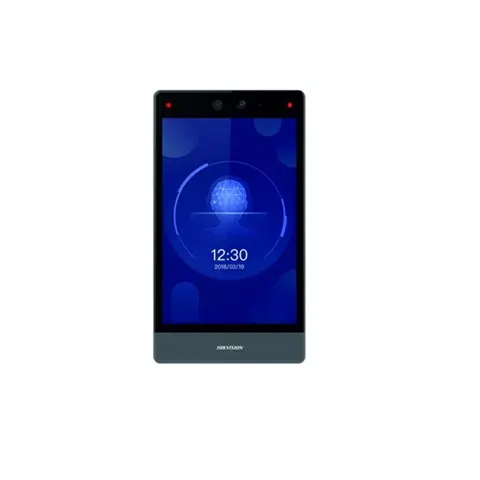

Hikvision Ultra Series Wall-Mounted Face Access Terminal
- Ultra-Fast Face Recognition: Identifies users in < 0.2 seconds with an accuracy rate of ≥ 99% at distances from 0.3 m to 3 m.
Massive Capacity:
100,000 face templates
100,000 card records (supports Mifare, Felica, DESFire)
150,000 event logs
8-Inch Touchscreen: Bezel-less capacitive LCD for intuitive interaction and visual clarity.
Dual 2MP Cameras: Wide field of view (HFOV 88°, VFOV 44°, DFOV 108°) with anti-spoofing and liveness detection.
Multi-Authentication Modes: Supports face, card, QR code, and two-way audio with indoor stations.
Connectivity Options: Includes RS-485, Wiegand, TCP/IP, PoE, and USB for flexible integration.
Weatherproof & Durable: IP65-rated for outdoor use, with a sleek and robust design.
- QR Code Recognition: Accepts codes larger than 6 × 6 cm (great for visitor access or temporary credentials).
- Web & Mobile Configuration: Easily managed via web client or mobile app, streamlining setup and updates.
- Custom Attendance Status: Tailor attendance modes and status names to match your organization’s workflow
- Installation Safety: Ensure proper grounding and avoid direct sunlight or reflective surfaces near the camera.
Privacy Compliance: Display signage and obtain consent when using biometric authentication.
Environmental Limits: Operates between -30°C to +60°C, humidity 0–90% (non-condensing).
Power Supply: Requires 12–24V DC, 3A or standard PoE (use certified adapters only).
- Terminal unit
- Mounting bracket and screws
- Waterproof connector kit
- Quick start guide and user manual
