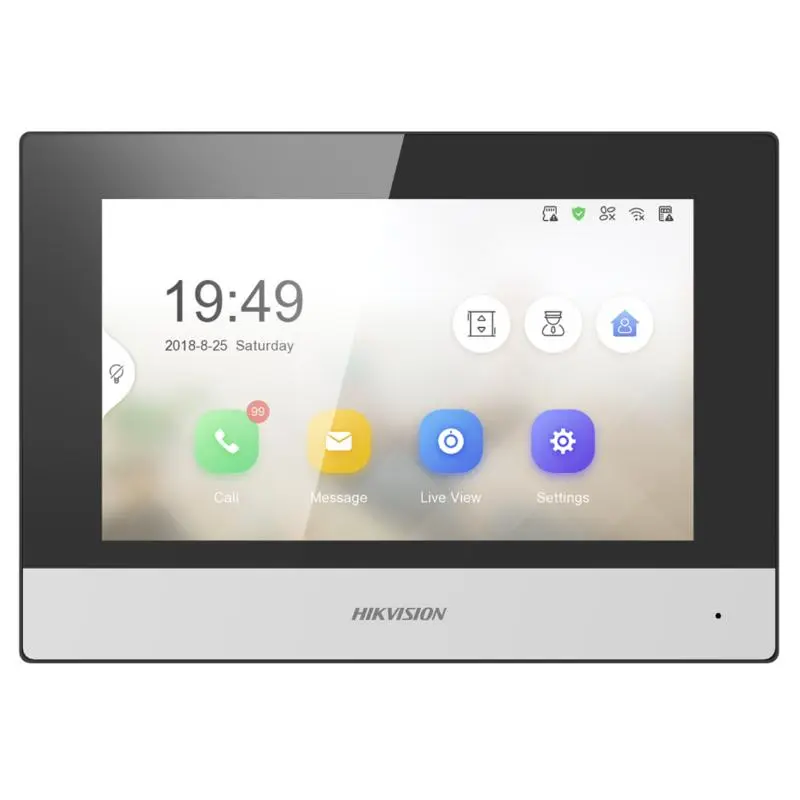

Hikvision KH6 Series IP-Based Indoor Station
🔧 Key Features
- 7-Inch Touchscreen Display Capacitive TFT screen with 1024 × 600 resolution for crisp visuals and intuitive navigation.
- Two-Way Audio & Video Communication Built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation.
- Remote Control via Hik-Connect App Receive calls, unlock doors, and view live video from door stations or linked cameras — all from your mobile device.
- Alarm Integration Supports up to 8 alarm inputs and 2 alarm outputs for enhanced security and automation.
- Expandable System
Connect up to 16 indoor extensions
Link with 17 door stations and 16 network cameras
- TF Card Support Insert a microSD card (up to 128 GB) to store 200 captured pictures and 200 alarm records.
- Wi-Fi Connectivity Supports 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) for flexible installation without Ethernet cabling.
- Elevator Control & Messaging Supports elevator access control and voice messaging when calls go unanswered.
🔍 Smart hint
- No PC Required: Configure the entire system directly from the touchscreen — ideal for quick setup.
- Smart Linkage: Automatically triggers alarms or notifications based on motion or doorbell events.
- Multi-Language Support: Available in over 30 languages including English, Arabic, French, Spanish, Turkish, and more
⚠️ Warnings
- Indoor Use Only: Designed for indoor environments; operating temperature range is –10°C to +55°C.
- Power Supply: Requires 12V DC or PoE (ensure stable power input).
- Privacy Compliance: Display signage and obtain consent when using video/audio recording features.
- Firmware Updates: Keep firmware current to maintain security and compatibility with Hikvision platforms.
📦 What’s Included
- Indoor station
- Surface-mount bracket
- Quick start guide and user manual
- Mounting screws and accessories
