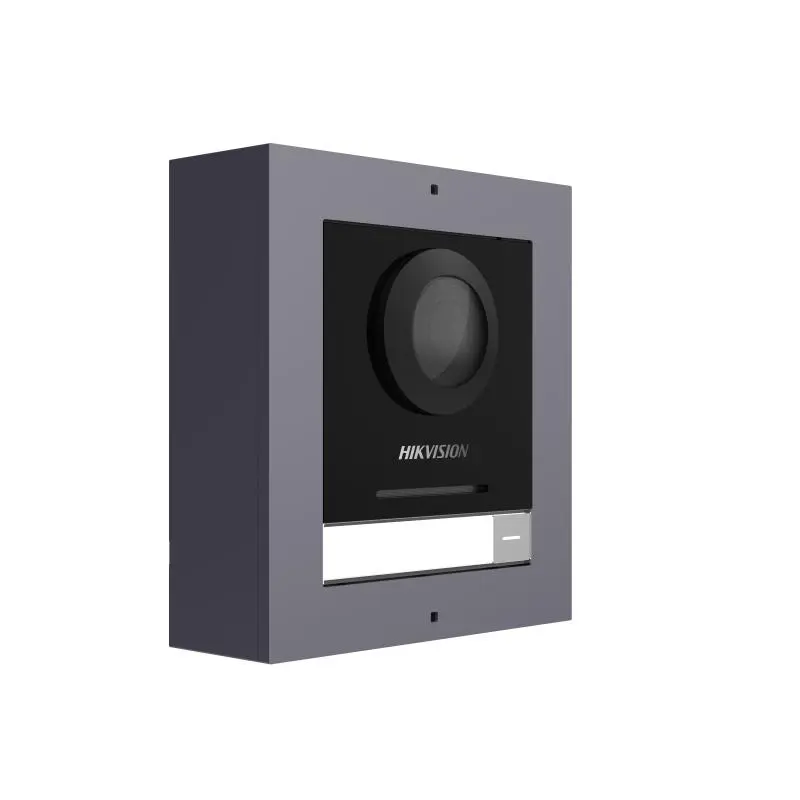

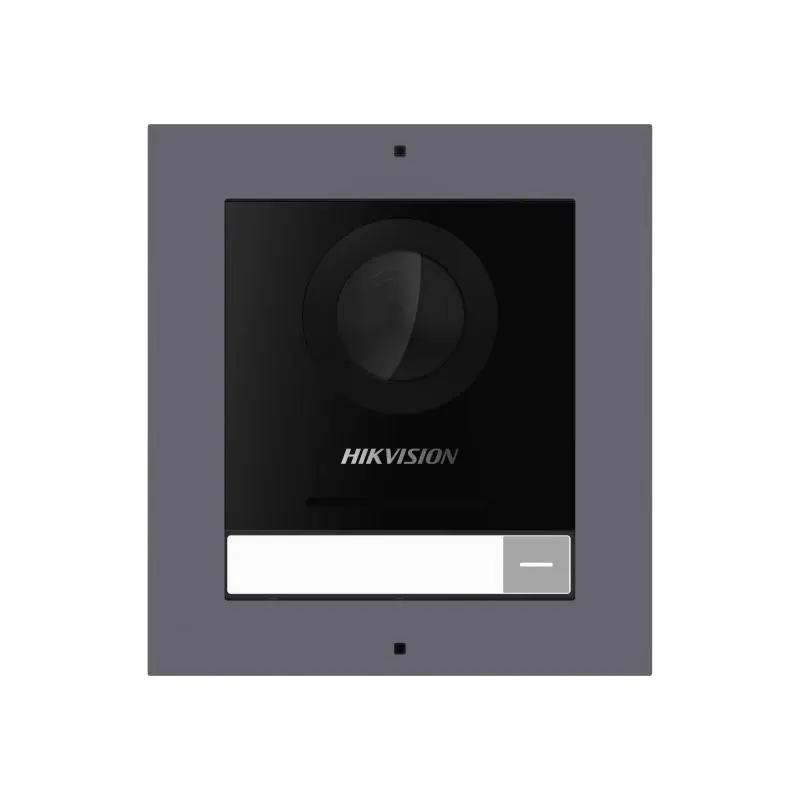

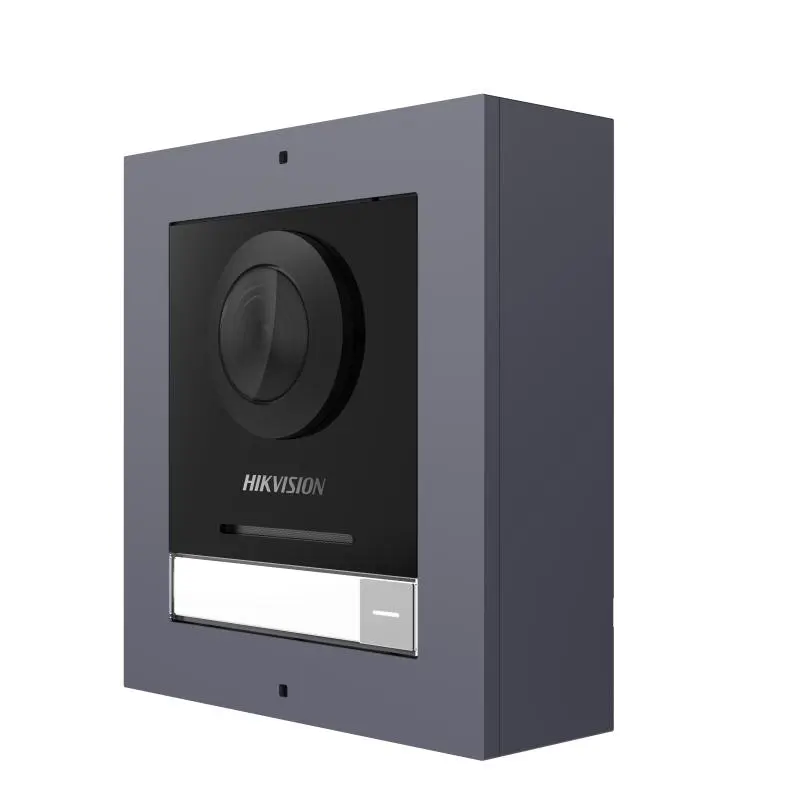

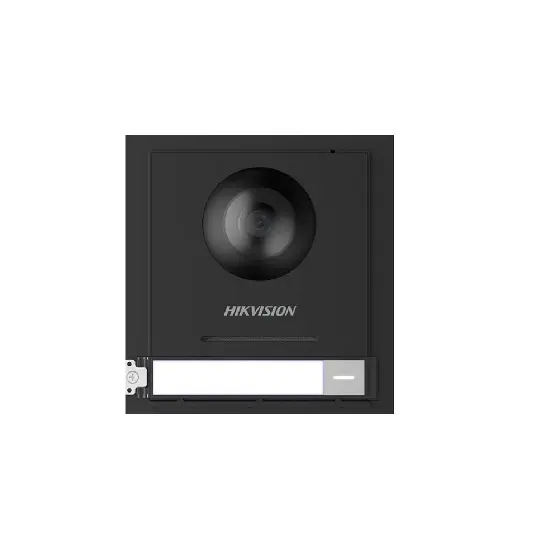

Hikvision KD8 Series Pro Modular Door Station
🔧 Key Features
- 2 MP Fisheye Camera
Wide 146° horizontal and 82° vertical field of view
IR supplement light for low-light visibility
- Modular Design: Supports up to 8 sub-modules (e.g., keypad, card reader, display) for customized configurations
- One-Button Calling: Physical call button for direct communication with indoor stations
- Two-Lock Control: Built-in relays to manage two electronic locks (max 30V, 2A)
- Audio System
Omnidirectional microphone and loudspeaker
Noise suppression and echo cancellation
G.711 U/A audio compression
- Network & Power
PoE (IEEE 802.3af) or 12V DC power supply
10/100 Mbps Ethernet interface
Web-based remote configuration
- Durability
IP65-rated for water and dust resistance
Surface-mounted with DS-KD-ACW1 bracket
Operating temperature: –40°C to +60°C
🔍 Smart hint
- Power Output for Lock: Provides 12V, 500 mA directly to one lock (no need for an external power supply).
- Expandable System: Ideal for villas or multi-tenant buildings (connect up to 500 indoor stations).
- Web Configuration: Easily manage settings remotely via browser interface.
⚠️ Warnings
Installation Safety: Ensure proper grounding and waterproof sealing during setup.
Privacy Compliance: Display signage in monitored areas to meet legal surveillance standards.
Cybersecurity Note: As with all IP devices, secure with strong passwords and firmware updates to prevent unauthorized access.
📦 What’s Included
- Main unit
- Surface mount bracket
- Waterproof connector kit
- Quick start guide and user manual
- Mounting screws and accessories
