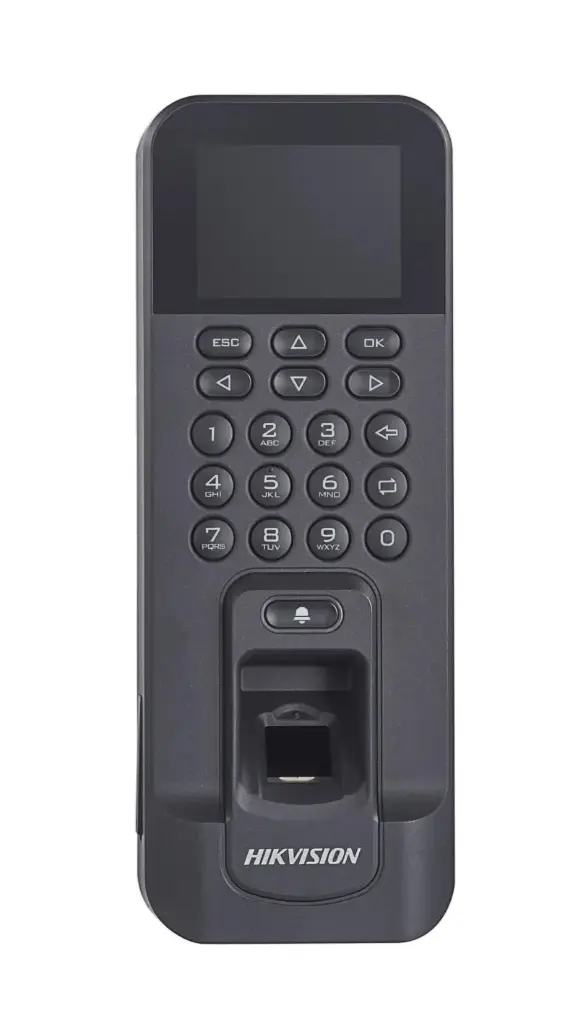

Hikvision K1T804A Pro Series Fingerprint Terminal - DS-K1T804AMF
🔧 Key Features
- Capacity: Stores 3,000 fingerprints, 3,000 cards, and 100,000 events.
- Authentication Methods: Fingerprint, card (Mifare1), and password.
- Display: 2.4-inch LCD-TFT screen, resolution 320 Ă— 240.
- Audio: Built-in loudspeaker and buzzer for feedback.
- Connectivity:
TCP/IP (10/100 Mbps, self-adaptive)
Wi-Fi support
RS-485 and Wiegand interfaces
- Control Interfaces: Lock control, exit button, alarm input/output.
- Protocols: ISUP5.0, ISAPI for integration with Hikvision systems.
🔍 Smart hint
- Enroll multiple fingerprints per user to reduce false rejection rates.
- Use Wi-Fi only for flexible installations; wired TCP/IP is more stable for high-security environments.
- Regularly back up event logs to prevent data loss.
- Position the terminal at ergonomic height (about 1.2–1.4m) for comfortable fingerprint scanning.
- Clean the sensor regularly to maintain accuracy.
⚠️ Warnings
- Professional installation recommended: Incorrect wiring may damage the device or connected locks.
- Firmware updates may change features; always check Hikvision’s website for the latest manual.
- Avoid exposure to direct sunlight or moisture, which can reduce fingerprint recognition accuracy.
- Unauthorized modification or repair voids warranty and may compromise security.
📦 What’s Included
- K1T804A Fingerprint Terminal unit
- Mounting plate and screws
- Power adapterÂ
- Quick start guide / user manual
- Wiring harness for lock, exit button, and alarm connections
