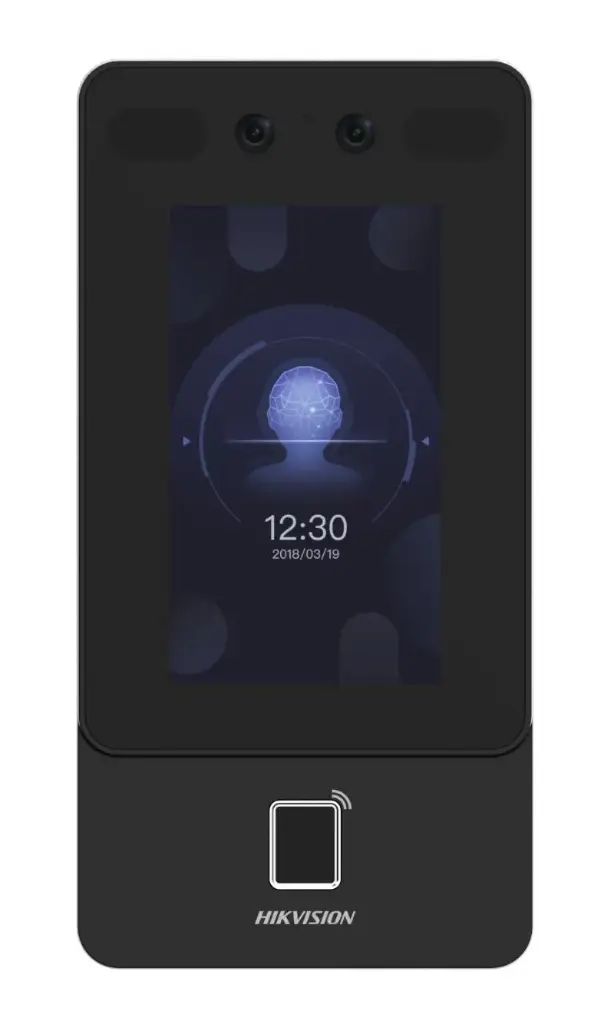

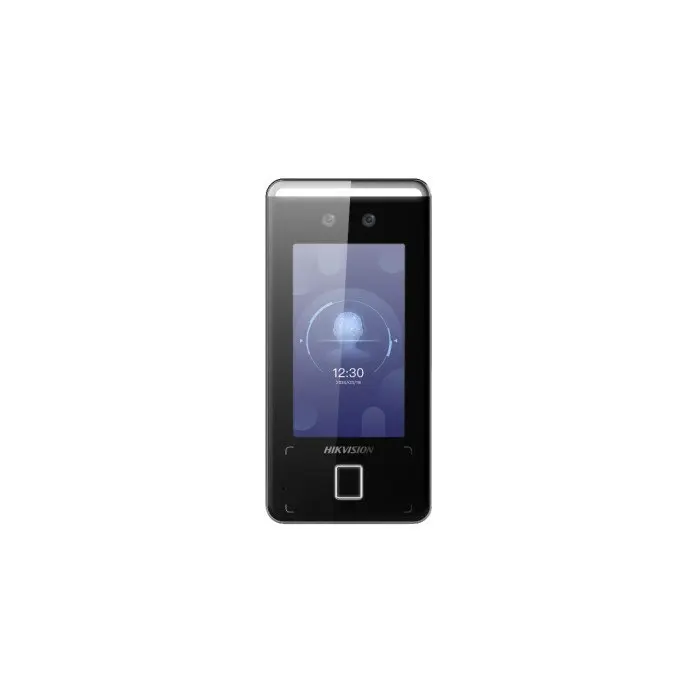

Hikvision Face Recognition Terminal
- Fast & Accurate Face Recognition
Recognition time: < 0.2 seconds
Distance: 0.3 to 1.5 meters
Accuracy: ≥ 99%, even with masks
- Multi-Authentication Modes
Supports face, fingerprint, card (Mifare), and PIN
Up to 1,500 face templates, 3,000 fingerprints, and 3,000 cards
- 4.3" LCD Touchscreen
Capacitive display with 272 × 480 resolution
Intuitive interface for user interaction and configuration
- Dual 2MP Cameras
Wide-angle lens for better coverage
IR supplement for low-light recognition
- Connectivity & Integration
TCP/IP, Wi-Fi, RS-485, Wiegand, USB
Supports PoE (IEEE802.3at) and 12V DC power input
Compatible with ISAPI, ISUP 5.0, and Hikvision platforms
- Event Capacity
Stores up to 150,000 event records for audit and tracking
- Two-Way Audio Support
Integrates with indoor stations and client software for communication
- Weatherproof Design
IP65-rated for outdoor use
Operating temperature: –30°C to +60°C
- Platform PIN Sync: Supports both platform-applied and device-set personal PINs for flexible access control.
- Face Anti-Spoofing: Built-in liveness detection helps prevent unauthorized access using photos or masks.
- Time Attendance Ready: Ideal for offices, schools, and factories with built-in attendance tracking features.
- Installation Safety: Avoid direct sunlight or reflective surfaces near the camera to maintain recognition accuracy.
Power Output Note: When powered via PoE, the device can also supply 12V DC/1A to a connected door lock.
Privacy Compliance: Ensure visible signage and user consent when deploying biometric systems.
Environmental Limits: Humidity range: 0–90% (non-condensing)
- Terminal unit
- Wall-mounting bracket and screws
- Waterproof connector kit
- Power adapter (12V DC)
