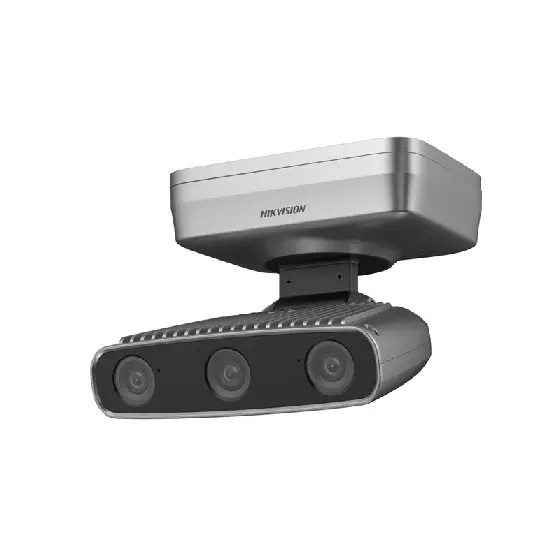

Hikvision DeepinView Triple-Lens Activity Analysis Camera
🔧 Key Features
- Triple-Lens Design: Combines a middle lens (1/1.8″ CMOS) and two side lenses (1/2.7″ CMOS) for stereo imaging and depth perception.
- 4 MP Resolution: Delivers sharp video at up to 2560 Ă— 1440 pixels with up to 30 fps across multiple streams.
- Advanced Activity Analysis:
Detects up to 10 abnormal events, including loitering, falling down, and crowd gathering.
Filters out targets below a height threshold to avoid false alarms.
- Deep Learning Engine: Powered by a high-performance GPU and binocular stereo imaging algorithm for precise behavior recognition.
- Smart Calibration Modes: Supports auto, manual, and smart calibration for flexible setup.
- Supplemental Analytics Light: Speckle light (not for illumination) enhances depth analysis; range up to 6.6 m (2.8 mm) or 8.6 m (4 mm).
- Robust Image Enhancements: Digital WDR, BLC, 3D DNR, and ≥50 dB SNR for clean, balanced visuals.
- Multiple Streams: Supports up to four video streams with scalable encoding and ROI targeting
🔍 Smart hint
- Behavioral Intelligence: Ideal for high-risk zones like hospitals, schools, or public transit hubs where detecting falls or loitering can trigger rapid response.
- Stereo Depth Detection: Triple-lens setup enables 3D scene understanding (something single-lens cameras can’t match).
- Flexible Mounting: Pan: 0°–355°, Tilt: 0°–135° for precise coverage of complex environments
⚠️ Warnings
- Installation Safety: Use proper grounding and avoid direct exposure to moisture; enclosure is IP67 and IK10 rated for weather and vandal resistance.
- Power Supply: Operates on 12V DC or PoE, power adapter not included.
- Environmental Limits: Works in temperatures from -30°C to +60°C, humidity ≤ 95% (non-condensing).
- Privacy Compliance: Ensure visible signage and legal authorization when deploying behavioral analytics in public spaces.
📦 What’s Included
- Camera Unit
- Mounting bracket and waterproof connector kit
- Quick start guide and user manual
- Built-in microSD/SDHC/SDXC slot
Note: microSD supports up to 512Â GB card not included
