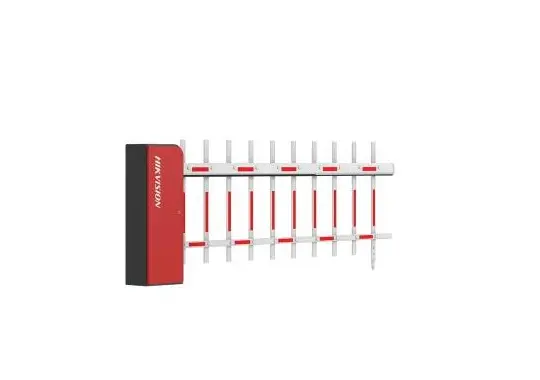

Hikvision Barrier gates with fence boom pole
🔧 Key Features
- Fence Boom Pole Design: Offers enhanced physical security and visual deterrence with a segmented fence-style boom.
- DC Brushless Motor: Low-noise, high-torque motor ensures smooth, precise, and energy-efficient operation.
- Fast & Controlled Movement: Boom opens and closes in approximately 3 seconds, with DC variable frequency control for smooth transitions.
- Obstacle Rebound & Opening Priority: Automatically reverses if an object is detected and prioritizes opening in emergencies.
- Boom Delay Control: Default 10-second delay before closing; configurable from 2 to 99 seconds.
- Event Logging: Built-in log system for fault detection and status monitoring via nixie tube display.
- Manual Override: Handwheel allows manual boom opening during power failure.
- Auto Opening on Power Cut: Optional feature to allow emergency vehicles through during outages.
- Durability: Rated for 5 million cycles, built for high-frequency use in demanding environments.
🔍 Smart hint
- Left or Right Boom Options: Available in DS-TMG423-L/B (left) and DS-TMG423-R/B (right) configurations for flexible installation.
- Body Indicators: Integrated LED indicators show gate status — green for access, red for stop.
- Compact Housing: Slim profile (1060 Ă— 370 Ă— 262 mm) fits tight spaces while maintaining robust performance.
⚠️ Warnings
- Safety First: Always install with proper grounding and anti-fall sensors (IR, radar, or loop detectors).
- Environmental Limits: Operates reliably in outdoor conditions with humidity ≤ 90% and standard temperature ranges.
- Legal Use: Ensure compliance with local traffic and safety regulations.
- Boom Height: Installed at 885 mm — verify clearance and alignment with vehicle types.
📦 What’s Included
- Fence-style boom pole (typically 4 meters)
- Mounting hardware and installation guide
- RS-485 interface and signal light connectors
- Manual override handwheel
