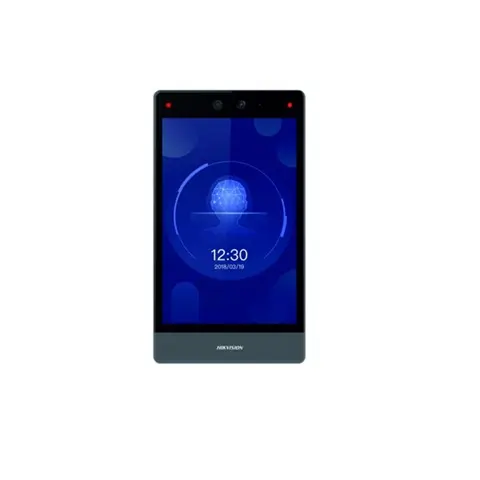

Hikvision Ultra Series Wall-Mounted Face Access Terminal - DS-K1T680D-E1

🔧 Key Features

Ultra-Fast Face Recognition: Identifies users in < 0.2 seconds with an accuracy rate of ≥ 99% at distances from 0.3 m to 3 m.
Massive Capacity:
- 100,000 face templates
- 100,000 card records (supports Mifare, Felica, DESFire)
- 150,000 event logs
8-Inch Touchscreen: Bezel-less capacitive LCD for intuitive interaction and visual clarity.
Dual 2MP Cameras: Wide field of view (HFOV 88°, VFOV 44°, DFOV 108°) with anti-spoofing and liveness detection.
Multi-Authentication Modes: Supports face, card, QR code, and two-way audio with indoor stations.
Connectivity Options: Includes RS-485, Wiegand, TCP/IP, PoE, and USB for flexible integration.
Weatherproof & Durable: IP65-rated for outdoor use, with a sleek and robust design.

🔍 Smart hint

QR Code Recognition: Accepts codes larger than 6 × 6 cm (great for visitor access or temporary credentials).
Web & Mobile Configuration: Easily managed via web client or mobile app, streamlining setup and updates.
Custom Attendance Status: Tailor attendance modes and status names to match your organization’s workflow

⚠️ Warnings

Installation Safety: Ensure proper grounding and avoid direct sunlight or reflective surfaces near the camera.
Privacy Compliance: Display signage and obtain consent when using biometric authentication.
Environmental Limits: Operates between -30°C to +60°C, humidity 0–90% (non-condensing).
Power Supply: Requires 12–24V DC, 3A or standard PoE (use certified adapters only).

📦 What’s Included

CCTV Security Network

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

DS-K1T680D-E1_Datasheet_20241206.pdf
