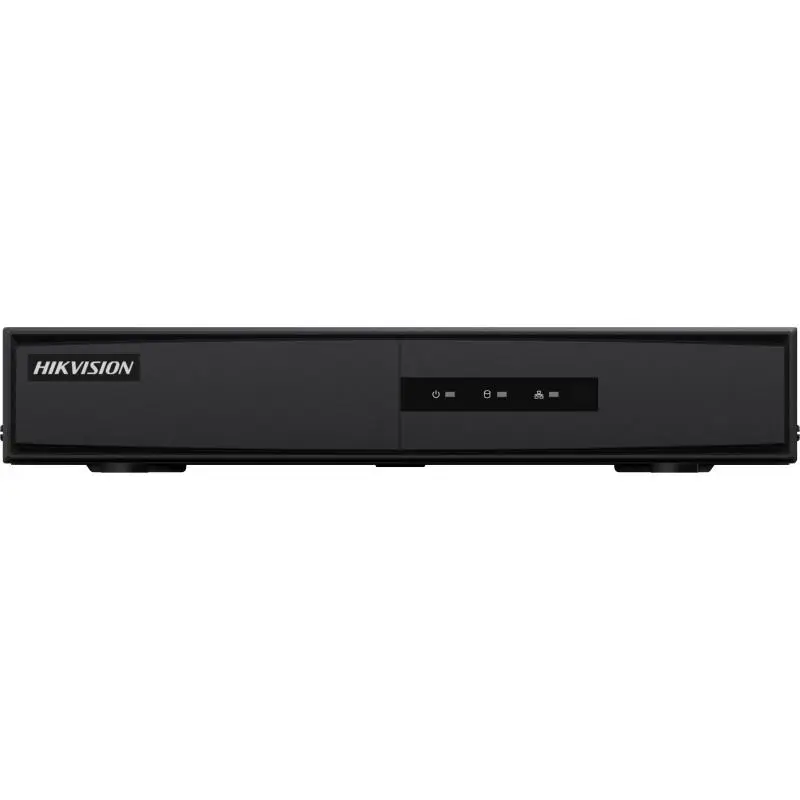

Hikvision 8-ch Mini 1U NVR
- 8 IP Camera Inputs Supports up to 8 channels of IP video input with 4 built-in PoE ports for plug-and-play setup.
Video Compression Compatible with H.265+, H.265, H.264+, H.264 — significantly reduces storage and bandwidth usage.
Decoding Capability
Up to 4-ch@1080p, 2-ch@4MP, or 1-ch@6MP decoding at 30 fps
Full-channel recording at up to 4MP resolution
Dual Video Outputs Simultaneous HDMI and VGA output at up to 1080p/60Hz for flexible display options.
Smart Functions
Supports line crossing and intrusion detection
Smart search and smart playback for efficient event review
Storage Capacity
1 SATA interface, supports up to 6TB HDD
4-channel synchronous playback
Network & Connectivity
4 PoE ports (IEEE 802.3 af/at)
1 RJ-45 10/100 Mbps Ethernet interface
Supports protocols like TCP/IP, DHCP, Hik-Connect, DDNS, NTP, SMTP, UPnP
Remote Access Compatible with Hik-Connect, iVMS-4200, and browser-based clients for mobile and desktop viewing
- Auto Camera Discovery: Automatically detects and adds IP cameras after activation (great for quick setup).
Compact Design: At just 265 × 223 × 48 mm, it’s perfect for desktop or wall-mounted installations.
PoE Budget: Total PoE output is ≤ 36W, ideal for low-power IP cameras.
- Power Supply: Requires 48V DC, 1AÂ (use the included adapter or a certified equivalent).
- Environmental Limits: Operates between –10°C to +55°C, humidity 10–90% (indoor use recommended).
- Privacy Compliance: Ensure proper signage and legal authorization when recording in public or shared spaces.
- Cybersecurity: Always change default passwords and keep firmware updated to prevent unauthorized access.
- NVR unit
- Power adapter and cable
- USB mouse for navigation
- Quick start guide and user manual
