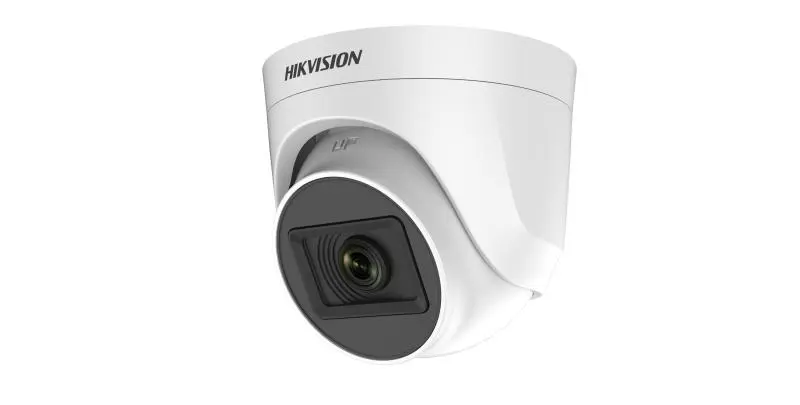

Hikvision 5 MP Indoor Fixed Turret Camera
🔧 Key Features
- 5 MP CMOS Sensor: Delivers high-resolution video at up to 2560 × 1944 pixels.
- EXIR 2.0 Infrared Technology: Provides up to 20 meters of night vision with enhanced IR uniformity and clarity.
- 4-in-1 Video Output: Supports TVI, AHD, CVI, and CVBS formats — switchable for flexible compatibility.
- Lens Options:
2.4 mm: 103° horizontal FOV
2.8 mm: 86° horizontal FOV
3.6 mm: 80° horizontal FOV
6 mm: 55° horizontal FOV
- Digital WDR: Improves visibility in high-contrast scenes.
- Image Enhancements: Includes BLC, HLC, DNR, and Smart IR for optimized clarity.
- Day/Night Mode: Automatic IR cut filter for seamless switching between color and B/W modes.
- Compact Design: Plastic housing with a discreet turret form factor — ideal for ceiling or wall mounting.
- Weatherproof Build: IP67-rated for dust and water resistance.
🔍 Smart hint
- Signal Switching: Easily toggle between video formats using the OSD menu or UTC controller (perfect for upgrading legacy systems).
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° for flexible installation.
- Low-Light Performance: Minimum illumination of 0.01 Lux (color) and 0 Lux with IR (great for dim environments).
⚠️ Warnings
- Power Supply: Requires 12V DC ±25%, max consumption 4.3W (use certified adapters only).
- Installation Safety: Avoid direct sunlight and reflective surfaces near the lens to maintain image quality.
- Environmental Limits: Operates between –40°C to +60°C, humidity ≤ 90% (non-condensing).
- Regulatory Notes: FCC Class A compliant (suitable for commercial environments)
📦 What’s Included
- Camera Unit
- Mounting screws and bracket
- Waterproof connector kit
- Quick start guide and user manual
