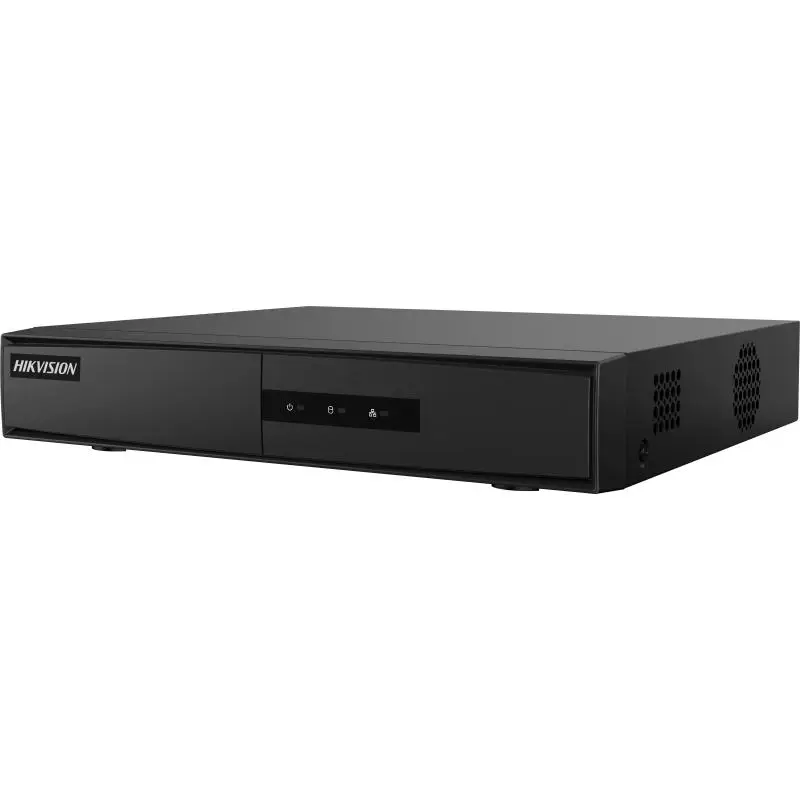

Hikvision 4-ch Mini 1U 4 PoE NVR
🔧 Key Features
- 4 IP Camera Inputs Supports up to 4 channels of IP video input with PoE on all ports for plug-and-play installation.
- Video Compression Compatible with H.265+, H.265, H.264+, H.264 — reduces bandwidth and storage usage by up to 75%.
- Decoding Capability
Up to 4-ch@1080p or 2-ch@4MP or 1-ch@6MP decoding at 30 fps
Supports full-channel recording at up to 4MP resolution
- Dual Video Outputs Simultaneous HDMI and VGA output at up to 1080p/60Hz for flexible display options.
- Smart Functions
Line crossing and intrusion detection
Smart search and smart playback for efficient event review
- Storage Capacity
1 SATA interface, supports up to 6TB HDD
4-ch synchronous playback
- Network & Connectivity
4 PoE ports (IEEE 802.3 af/at)
1 RJ-45 10/100 Mbps Ethernet interface
Supports TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SMTP, UPnP protocols
- Remote Access Compatible with Hik-Connect, iVMS-4200, and browser-based clients for mobile and desktop viewing.
🔍 Smart hint
- Auto Camera Discovery: Automatically detects and adds IP cameras after activation — great for quick setup.
Compact Design: At just 265 × 223 × 48 mm, it’s perfect for tight spaces or desktop installations.
PoE Budget: Total PoE power output is ≤ 36W, so ideal for low-power IP cameras.
⚠️ Warnings
- Power Supply: Requires 48V DC, 1AÂ (use the included adapter or a certified equivalent).
- Environmental Limits: Operates between –10°C to +55°C, humidity 10–90% (indoor use recommended).
- Privacy Compliance: Ensure proper signage and legal authorization when recording in public or shared spaces.
- Cybersecurity: Always change default passwords and keep firmware updated to prevent unauthorized access.
📦 What’s Included
- NVR unit
- Power adapter and cable
- USB mouse for navigation
- Quick start guide and user manual
