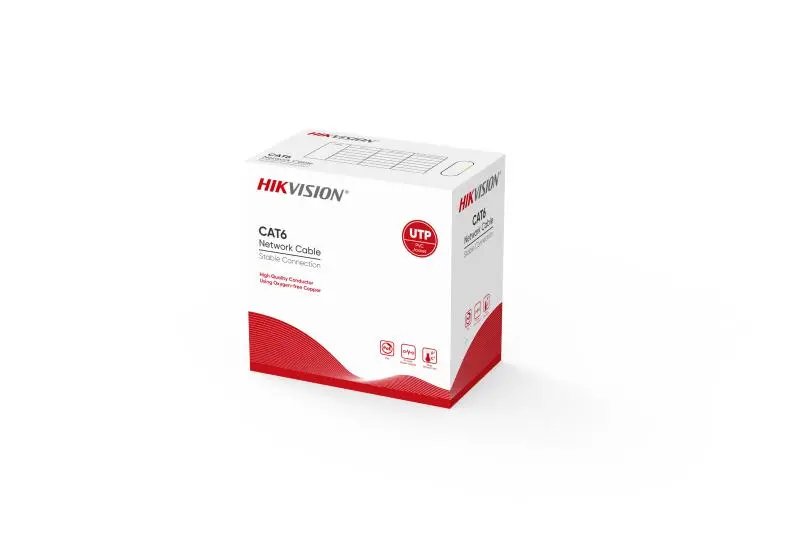

Hikvision 305 m CAT6 UTP Network Cable
🔧 Key Features
- Category: Cat6 U/UTP (Unshielded Twisted Pair)
- Conductor: Solid bare copper (99.95%), 23 AWG, 0.55 ± 0.005 mm diameter
- Insulation: HDPE, 0.98 ± 0.05 mm diameter
- Sheath: PVC, 6.00 ± 0.30 mm diameter, grey color
- Length: 305 ± 1.5 meters per roll
- Compliance: ANSI/TIA-568-C.2, ISO/IEC11801, IEC61156, RoHS 2.0
- Performance:
Fluke-tested for 90 m permanent link and 100 m channel
Supports PoE up to 57 V/1 A
Impedance: 100 ± 15 Ω @ ≤100 MHz, 100 ± 25 Ω @ 100–250 MHz
Delay skew ≤ 45 ns/100 m
DC resistance ≤ 9.38 Ω/100 m
- Temperature range: -20°C to 75°C
- Operating voltage: 60 V
- Mechanical strength:
Tensile strength ≥ 13.5 MPa (before aging), ≥ 12.5 MPa (after aging)
Elongation ≥ 150% (before aging), ≥ 125% (after aging)
Cold bend test passed at -20°C
🔍 Smart hint
- Long-distance PoE transmission in CCTV and IP camera setups
- High-speed data networks requiring stable electrical performance
- Installations in warm environments, thanks to its 50°C continuous load tolerance
- Projects needing durability, with strong tensile and compressive strength to resist damage during installation
⚠️ Warnings
- Not fire-resistant :avoid use in environments requiring flame-retardant cabling
Indoor or protected outdoor use only (PVC sheath is not UV-rated)
Ensure proper termination: use Cat6-rated connectors and patch panels
Avoid sharp bends : follow bend radius guidelines to prevent signal degradation
📦 What’s Included
- 305-meter roll of UTP cable
- Rip-cord and internal separator for easy stripping
- Printed sheath with traceability code
- No connectors or tools included (sold as bulk cable)
