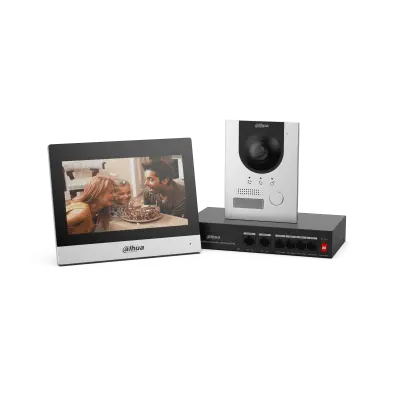

Dahua KTP01 Pro IP Villa Outdoor Station & Indoor Monitor
- Outdoor Door Station (DHI-VTO2201F-P):
2MP HD CMOS camera with 140° wide-angle lens and low-light performance.
Anodized aluminum front panel for durability.
Supports two locks for access control.
Video intercom function with clear audio and video.
Remote unlock via Dahua app on smartphone.
Surface or flush mounting options.
IK07 impact resistance and IP65 weatherproof rating (requires silicone sealant for proper sealing).
- Indoor Monitor (VTH series):
7-inch TFT capacitive touchscreen (1024 Ă— 600 resolution).
6-channel alarm input and 1-channel alarm output for enhanced security.
SOS alarm function for emergencies.
Supports daisy chain topology for flexible installation.
Standard PoE power supply.
- PoE Switch (4-port):
4 PoE ports with 10/100 Mbps Base-TX.
2 uplink ports with 10/100 Mbps Base-TX.
Supports long-distance PoE transmission up to 250 m
- Use the Dahua app to talk to visitors and unlock doors remotely.
- Integrate with alarms and IP cameras for a unified smart home security system.
- PoE simplifies installation—only one cable for power and data.
- The included PoE switch supports long-distance transmission, ideal for larger properties.
- SOS alarm adds an extra layer of safety for emergencies.
- Weatherproofing: The outdoor station requires silicone sealant around the shell to maintain IP65 protection.
- Power Supply: Ensure your PoE switch complies with 802.3af/at standards; otherwise, the system may not power correctly.
- Installation: Improper mounting or sealing can reduce durability and water resistance.
- Compatibility: Always check firmware updates and app compatibility for smooth operation.
- 1 Ă— IP Villa Door Station (DHI-VTO2201F-P)
- 1 Ă— IP Indoor Monitor (7-inch VTH series)
- 1 Ă— 4-port PoE Switch (with 2 uplink ports, supports 250 m transmission)
- Mounting accessories (brackets, screws).
- Quick Start Guide and manuals.
