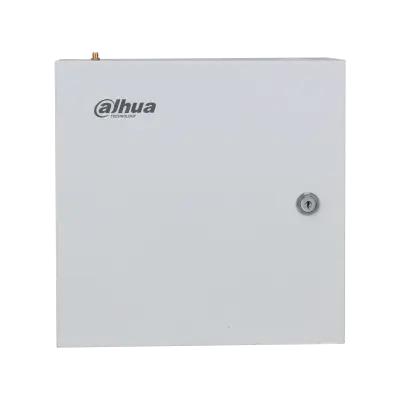

DAHUA Alarm Controller Wall mount

• Expandable Alarm Inputs/Outputs:

• • 8 local alarm inputs (expandable to 72)

  • 4 local alarm outputs (expandable to 84)

• Multiple Zone Types: Instant, delayed, 24-hour silent zones
• Tamper & Fault Alarms: Detects controller/keypad tampering, power failure, battery issues, network/IP conflicts
• Flexible Arming/Disarming: Via keypad, keyfob, IC card, web interface, or platform
• Emergency Alarms: Supports fire, medical, and duress alerts
• Remote Management:

• • Web-based configuration

  • Remote updates and alarm event search

• CID Protocol Support: Compatible with alarm receiving centers via PSTN
• Dual Ethernet Ports: For network redundancy
• High-Capacity Logging: Stores up to 20,000 event logs
• Subsystem Support: Up to 8 subsystems with independent control

Use the subsystem feature to segment your property into zones—like separating residential and commercial areas—so you can arm/disarm them independently. This is especially useful for multi-use buildings or large homes.

• Neutral Power Required: Ensure proper wiring during installation
• PSTN Module Needed for Personal Calls: Requires additional hardware
• Limited Wireless Support: Primarily designed for wired setups
• Environmental Conditions: Operates between –10 °C to +55 °C; avoid extreme humidity or heat
• Power Consumption: Up to 60W at full load—plan your backup battery accordingly

• 1 × ARC2008C Alarm Controller
• 1 × User Manual

• 1 × Mounting Accessories (screws, brackets)

• 1 × Default Jumper & Forced Start Button

• 1 × RS-485 and RS-232 Ports

• 1 × Buzzer and Indicator Lights

• 1 × Auxiliary Power Output (12VDC, 1A)
