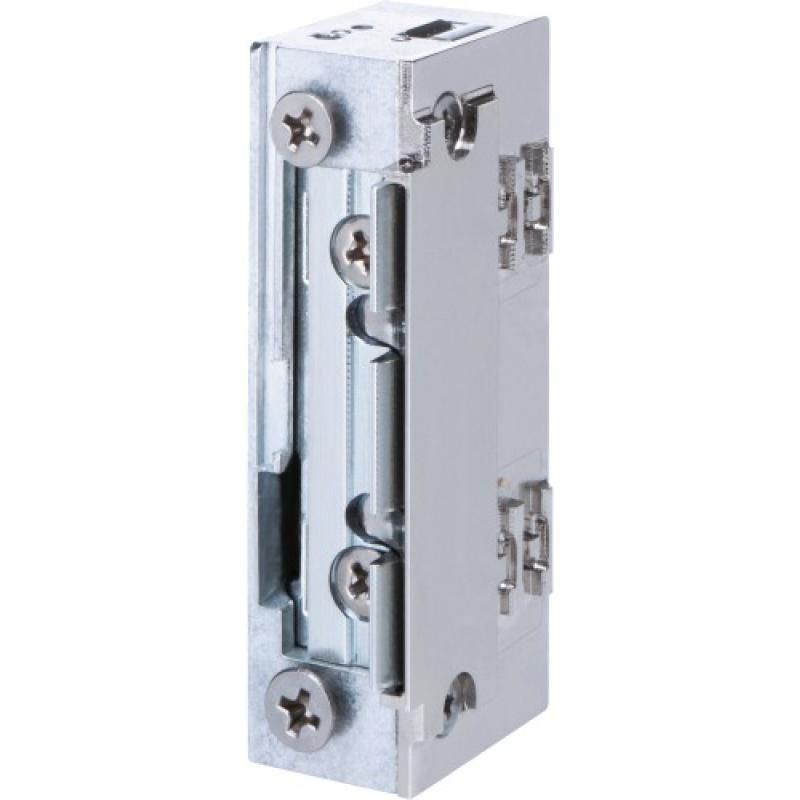

Effeff Model range 118W ProFix 210/24 Vcc
🔧 Key Features
- Water-protected design → Suitable for outdoor installation.
- Compact dimensions → Height 66 mm, width 20.1 mm, depth 25.5 mm.
- Universal DIN direction → Works for DIN left, right, and horizontal mounting.
- Voltage range → 10–24 V AC/DC (continuous duty at 11–13 V DC).
- FaFix® adjustable keeper → ±3 mm adjustment for precise alignment.
- Fail-locked operation → Door remains locked when power is off.
- Break-in resistance → 3750 N (robust against forced entry).
- Current consumption:
12 V AC → 250 mA
12 V DC → 280 mA
24 V AC → 500 mA
24 V DC → 560 mA.
- Compatible with ProFix®2 strike plates for flexible installation
🔍 Smart hint
- Check compatibility: Always confirm your electric strike model (118.13 ProFix®2) before ordering.
- Universal fitting: Can be used for both left and right-handed doors, simplifying stock and installation.
- Durability: Stainless steel construction makes it ideal for high-traffic or external doors.
- Deadbolt cutout: Provides flexibility for locks with additional security features.
⚠️ Warnings
Model-specific: Designed for Effeff ProFix®2 series 118.13 — using with other models may cause misalignment.
Installation precision: Incorrect fitting can compromise latch alignment and door security.
Door type: Ensure your door dimensions and lock type match the strike plate specifications.
Maintenance: Regularly check fixing screws to avoid loosening over time.
📦 What’s Included
1 × Flat strike plate (14C35-01)
Mounting holes (4) for installation.
Documentation (product sheet, technical drawings).
| Brand: Eff eff |
